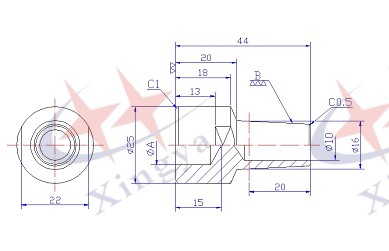

螺母上電極
螺母上電極 材質(zhì)：CuCrZr2
|
型 號 |
A |
B錐度 |
螺母 |
|
XY-SD1-5 |
6 |
1/5 |
M4 |
|
XY-SD1-10 |
1/10 |
M5 | |
|
XY-SD2-5 |
9 |
1/5 |
M6 |
|
XY-SD2-10 |
1/10 |
M8 | |
|
XY-SD3-5 |
13 |
1/5 |
M10 |
|
XY-SD3-10 |
1/10 |
M12 |

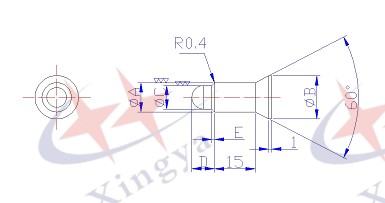

KCF定位銷 T型
T型定位銷 材質(zhì)：KCF
|
型 號 |
A |
B |
C |
D |
E |
螺母 |
|
XY-T-4 |
4.8 |
12 |
5.5 |
R11 |
1.0 |
M4 |
|
XY-T-5 |
5.8 |
7.5 |
R15 |
1.0 |
M5 | |
|
XY-T-6 |
6.8 |
9.5 |
R23.6 |
1.5 |
M6 | |
|
XY-T-8 |
8.8 |
11 |
R21.7 |
1.5 |
M8 | |
|
XY-T-10 |
10.8 |
16 |
12 |
R22.3 |
2.0 |
M10 |
|
XY-T-12 |
12.8 |
15 |
R27.6 |
2.0 |
M12 |

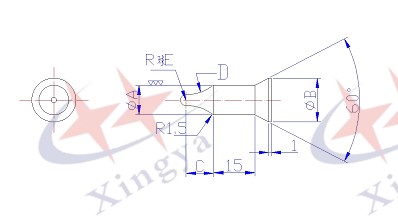

KCF定位銷 A型
A型定位銷 材質(zhì)：KCF
|
型 號 |
A |
B |
C |
D |
E |
螺母 |
|
XY-A-4 |
4.8 |
12 |
3.1 |
4 |
0.5 |
M4 |
|
XY-A-5 |
5.8 |
4.0 |
5 |
0.5 |
M5 | |
|
XY-A-6 |
6.8 |
4.8 |
5.5 |
0.5 |
M6 | |
|
XY-A-8 |
8.8 |
6.6 |
6 |
0.8 |
M8 | |
|
XY-A-10 |
10.8 |
16 |
8.3 |
8.5 |
1.0 |
M10 |
|
XY-A-12 |
12.8 |
10.3 |
10 |
1.0 |
M12 |
